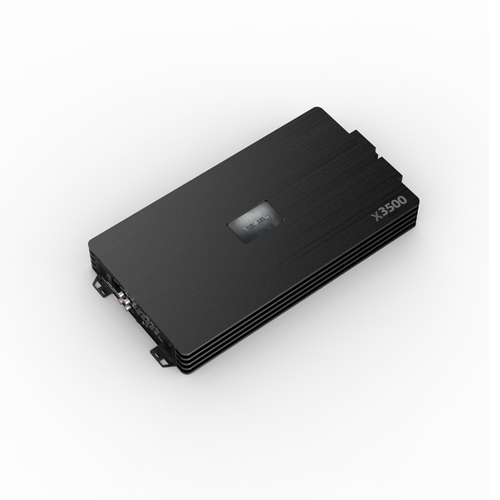

X35001 Power Class D 3500W Mono Block One Channel Car Audio Amplifier with Proctect Function
Share to:
X35001 Power Class D 3500W Mono Block One Channel Car Audio Amplifier with Proctect Function
Detail
Model Number: X3500.1 Class: D
Output Power@0.5 ohms: NA Signal-to-noise (@ 1W): >90dB
Maximum power: 3500W Signal Inputs: RCA
PCB: Double Side PCB and SMD components. Control: Adjustable Input level, LPF, Subsonic, bass boost function, Q control
Color: Black Function Protect: Advanced short circuit, overload, over heat, over and low voltage protection.
Input Sensitivity: 0.2V-5V Dimensions (L x W x H): 53x228x566mm
Output Power@1ohms: 3500W Output Power@2 ohms: 1400W
Output Power@4 ohms: 800W Remote Controller: Optional


Features:

3500W RMS Class D amplifier

0.5ohm load stable.

Double Side PCB and SMD components.

Adjustable Input level, LPF, Subsonic, bass boost function, Q control.

Advanced short circuit, overload, over heat, over and low voltage protection.

Advanced clip limit / thermal power limit function.

Easy bridgeable with same amplifier.

Optional remote controller.


ProtectFunction:

Overload: Protect less than 0.44 Ohm loads at fullscale output power.

Short Circuit:

Full rated power short circuit protect test:   passed.

Full rated power long last short circuit test: 10minutes passed.

Over temperature:

Limit output power while inner temperature reach 75 degree C, protect whileinner

temperature reach 85 degree C.

Low voltage Protect while power supply voltage lower than 8.6V.

Over voltage:

Protect while power supply voltage over 16.5V.

Power limit / Clip limit.

Clip limit while THD+N≥1%.

Power limit when inner temperature over 75 degreeC.
