X20001 Power ClassD 2000W Mono Block One Channel Car Audio Amplifier with Proctect Function
Share to:
X20001 Power ClassD 2000W Mono Block One Channel Car Audio Amplifier with Proctect Function
Detail
Model Number: X2000.1 Output Power@0.5 ohms: NA
Signal-to-noise (@ 1W): >90dB Maximum power: 2000W
Signal Inputs: RCA PCB: Double Side PCB and SMD components.
Control: Adjustable Input level, LPF, Subsonic, bass boost function, Q control Color: Black
Function Protect: Advanced short circuit, overload, over heat, over and low voltage protection. Input Sensitivity: 0.2V-5V
Dimensions (L x W x H): 53x228x453mm Output Power@1ohms: 2000W
Output Power@2 ohms: 1200W Output Power@4 ohms: 650W
Remote Controller: Optional

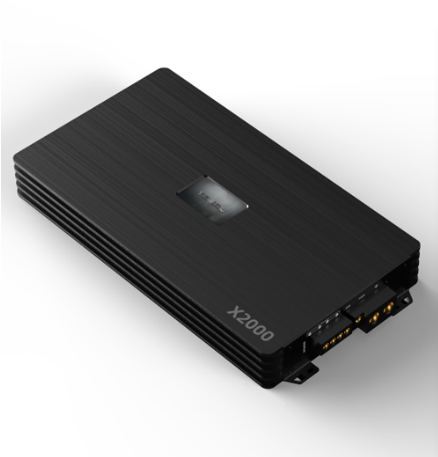

x2000 1.png

Features:

2000W RMS Class D car amplifier

1ohm load stable.

Double Side PCB and SMD components.

Adjustable Input level, LPF, Subsonic, bass boost function, Q control.

Advanced short circuit, overload, over heat, over and low voltage protection.

Advanced clip limit / thermal power limit function.

Easy bridgeable with same amplifier.

Optional remote controller.


ProtectFunction:

Overload: Protect less than 0.44 Ohm loads at fullscale output power.

Short Circuit:

Full rated power short circuit protect test:   passed.

Full rated power long last short circuit test: 10minutes passed.

Over temperature

Limit output power while inner temperature reach 75 degree C, protect while

inner temperature reach 85 degree C.

Low voltage Protect while power supply voltage lower than 8.6V.

Over voltage:

Protect while power supply voltage over 16.5V.

Power limit / Clip limit.
